Chronic Otitis Media
Chronic otitis media (COM) is a chronic infection of the middle ear cavity. It is caused by an ongoing inflammatory response within the middle ear (with granulation), and is typically associated with unresolved and resistant bacterial infections.
Around 0.9% of children and 0.5% of adults have chronic otitis media – and approximately half will develop an associated hearing impairment.
In this article, we shall look at the risk factors, clinical features and management of chronic otitis media.
There are many terminologies associated with chronic otitis media, which relate to different aetiologies:
- Mucosal COM – chronic inflammation secondary to a perforation (Fig. 1):
- The cause of the initial perforation may be infective, iatrogenic (e.g. grommet insertion), or trauma
- Any associated discharge from the perforation is termed an ‘active’ mucosal COM, also known as ‘Chronic Suppurative OM’ (CSOM)
- A dry perforation is referred to as ‘inactive’ mucosal COM
- Squamous COM – discharge due to a cholesteatoma (see end of article):
- Perforations deemed as ‘safe’ are those in the tubotympanic (anteroinferior) part of the tympanic membrane, as they carry a low risk of cholesteatoma
- ‘Unsafe’ perforations are in the atticoantral (posterosuperior) aspect of the tympanic membrane, as they are associated with high risk of cholesteatoma
Recurrent AOM is the most common cause of COM. Other associated risk factors include traumatic perforation of the TM, insertion of grommets, and craniofacial abnormalities.
Patients will present with a chronically discharging ear (for >6 weeks), in the absence of fever or otalgia. If fever or pain is present then other diagnoses should be considered, such as otitis externa, mastoiditis or intracranial involvement.
On examination, the tympanic membrane will be perforated (Fig. 2); it is important to note the location of the perforation due to the potential risk for cholesteatoma formation. Patients will often have a history of recurrent AOM, previous ear surgery or trauma to the ear.
It is important to test facial nerve function and document this clearly. Hearing loss can occur, which is nearly always conductive hearing loss, unless the disease is extensive
Audiograms and tympanometry should be performed, although this is not possible in a heavily discharging ear. Swabs can be useful in cases of treatment failure.
Whilst the diagnosis of COM is made clinically, any suspicion of cholesteatoma warrants a CT scan of the petrous temporal bone for further assessment.
The mainstay of treatment is aural toileting and topical antibiotic/steroid treatments until symptoms reduce or resolve. Any suspected cholesteatoma should be urgently investigated further.
Patients with symptoms lasting >6 weeks or those with large amounts of debris should be seen by an ENT specialist. The patient should be counselled on the importance of keeping the ear clean and dry.
Most TM perforations will heal spontaneously however large perforations may persist and referral for potential surgical management may be required.
Surgical treatment options are available but the success rate of surgical repair is dependent on the size and site of the perforation. The aim of closing a perforation is to relieve symptoms of persistent discharge and prevent recurrent infection.
Surgery can potentially improve hearing, although this will largely depend on the pre-operative state of the auditory apparatus. The main aim for surgery however is to obtain a dry ear. Surgical options include:
- Myringoplasty – closure of perforation in pars tensa
- The closure is achieved by patching on an autologous graft, usually harvested from the tragal cartilage or temporalis fascia.
- Tympanoplasty – a myringoplasty combined with reconstruction of the ossicular chain
Referred Ear Pain
If the external ear canal and drum are normal, with normal pneumatic speculum, pain is not from ear disease but instead referred pain.
Conditions to consider, due to the external ear’s numerous innervations, include:
- CN V = Parotid gland, upper molar teeth, or TMJ pathology
- CN VII = Ramsey Hunt syndrome
- CN IX and CN X = Malignancy of the posterior ⅓ tongue, piriform fossa, larynx, or infective causes, such as tonsillitis or quinsy

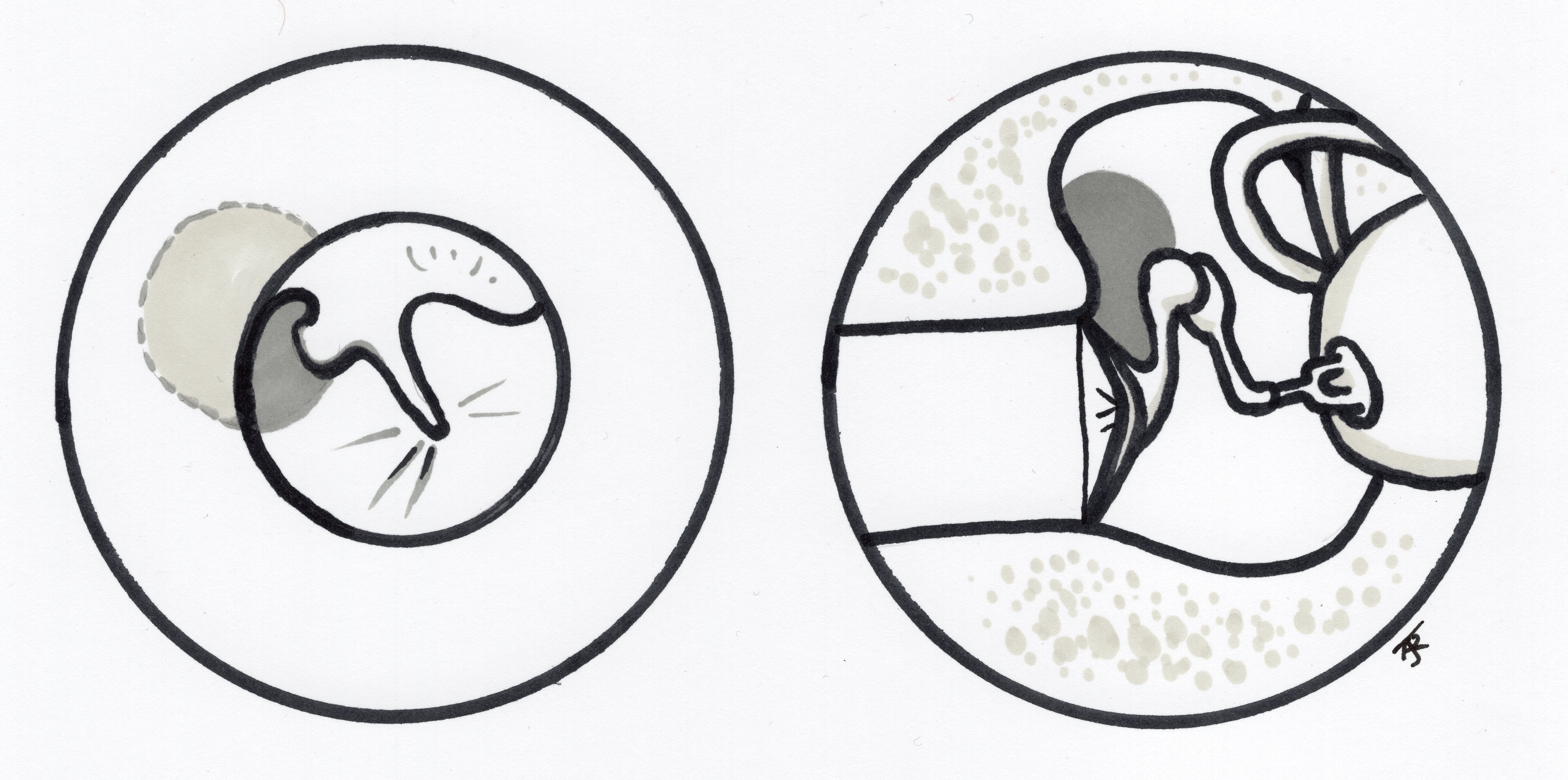

A cholesteatoma refers to a pocket of ectopic epithelium which grows in the attic of the middle ear. In this condition, epithelial cells naturally shed within this pocket but cannot escape the middle ear and so the collection grows (Fig. 3).
Many theories into their exact development exist, the most popular of which suggests during chronic otitis media, the retraction of the pars flaccida causes a ‘pocket’
to form in the attic. This abnormal migration of squamous epithelium in turn leads to cell debris building-up and the forming of a cholesteatoma.
It has no metastatic potential but can potentially have devastating locally destructive effects if left untreated. They grow independently and can affect the bones of middle ear, facial nerve, inner ear, and skull base.
Clinical Features and Investigation
Patients will present with conductive hearing loss, on a background of COM. Congenital cholesteatoma are rare and difficult to detect.
Diagnosis is made clinically during examination whereby a pearly, keratinized, or waxy mass in the attic region is seen (Fig. 4). These are best seen when a perforation of the TM is present, providing a window into the middle ear.

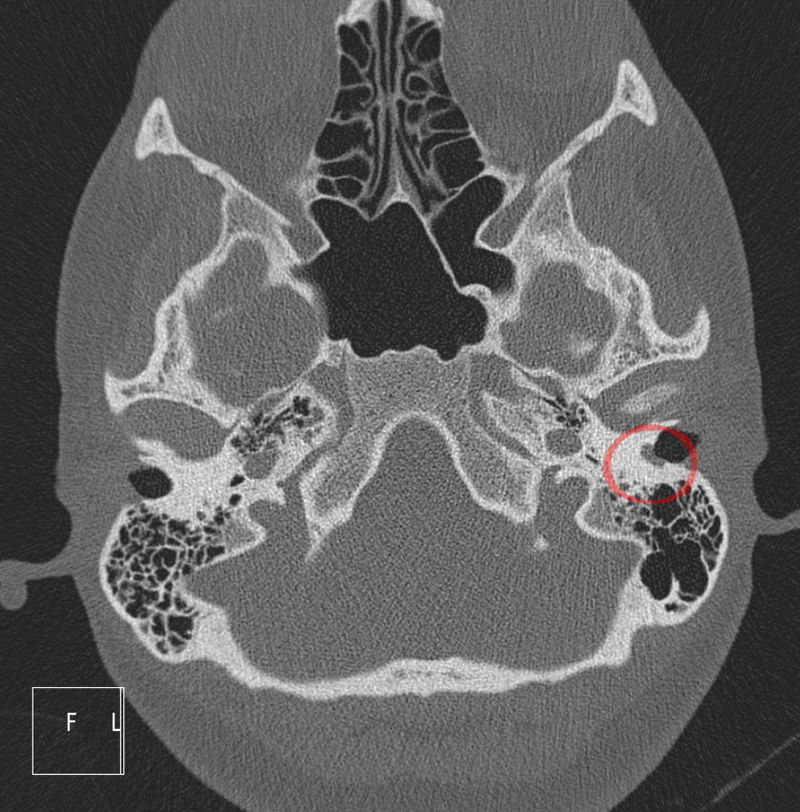

A CT scan (Fig. 5) is arranged pre operatively for surgical planning and guide clinical suspicion.
Definitive management of a cholesteatoma will be surgery, aiming to remove the entire cholesteatoma or it will recur.
Most surgical approaches involve creating a ‘mastoid cavity’, whereby the cholesteatoma is removed and the mastoid ‘cleaned out’ by drilling away the air cells. Access to the mastoid is traditionally made using a post-auricular or pre-auricular incision (although increasingly can be accessed endoscopically).
The ossicles can be reconstructed depending on the damage caused by the cholesteatoma. The aim of surgery is not to restore hearing but to halt progression of the destructive lesion and create a ‘safe and dry ear’.
- Mucosal COM is caused by chronic inflammation secondary to a perforation, squamous COM is caused by discharge due to a cholesteatoma
- Patients will present with a chronically discharging ear, in the absence of fever or otalgia
- The mainstay of treatment is aural toileting and topical antibiotic/steroid treatments until symptoms reduce or resolve, unless a cholesteatoma is suspected
- Cholesteatomas can be visualised during clinical examination if suspected, and further assessed via CT imaging
