Abdominal Incisions

A surgical incision is an aperture into the body to permit the work of the planned operation to proceed.

In abdominal surgery, the routinely used incisions include the Lanz incision, midline and paramedian incisions, and the Kocher incision.

In this article, we shall look at the anatomy and clinical use of these common abdominal incisions.

Principles of Surgical Incisions

The specific surgical incision will depend on the underlying pathology, site, patient factors, and the surgeon’s preference and experience. The key principles of making surgical incisions are:

  • Incisions should try to follow Langer’s lines where possible – for maximal wound strength with minimal scarring.
  • Muscles should be split and not cut (where possible).

Once the operation is over, surgical excisions can be closed by sutures, staples, steri-strips, tissue glue, or a combination of these agents. The wound should be covered in a protective dressing and kept dry for a few days, before normal washing can resume. Post-operative antibiotics can also be given depending on the degree of contamination.

Non-absorbable sutures or staples must be removed. When they are removed may vary depending on the site and indication of the closure. The patient should be advised to seek advice if any signs of SSIs, wound dehiscence, or keloid formation present.


Lanz Incision and Gridiron Incision

The Lanz and Gridiron incisions are two incisions that can be used to access the appendix, predominantly for appendicetomies.

Both incisions are made at McBurney’s point – two-thirds from the umbilicus to the anterior superior iliac spine (ASIS). They involve passing through all of the abdominal muscles, transversalis fascia, and then the peritoneum, before entering the abdominal cavity.

The Lanz incision is a transverse incision, while the Gridiron is oblique (superolateral to inferomedial). Due to its continuation with Langer’s lines, the Lanz incision produces much more aesthetically pleasing results with reduced scarring.

Fig 1 - Lanz (transverse) and Gridiron (oblique) incisions at McBurney's point.

Fig 1 – Lanz (transverse) and Gridiron (oblique) incisions at McBurney’s point.


Midline Incision

The midline incision ① is used for a wide array of abdominal surgery, as it allows the majority of the abdominal viscera to be accessed.

  • Anatomy – A midline laparotomy can run anywhere from the xiphoid process to the pubic symphysis, passing around the umbilicus. The incision will cut through the skin, subcutaneous tissue, and fascia, the linea alba and tranversalis fascia, and the peritoneum before reaching the abdominal cavity.
  • Discussion – As well as obtaining significant exposure of the viscera, this incision causes minimal blood loss or nerve damage, and can be used for emergency procedures. Its positioning however does make it susceptible to significant scars.

Paramedian Incision

The paramedian incision ② is rarely performed in the UK. It was originally used to access much of the lateral viscera, such as the kidneys, the spleen, and the adrenal glands.

  • Anatomy – The incision runs 2-5cm away from the midline, cutting through the skin, subcutaneous tissue, and the anterior rectus sheath.
    • The anterior rectus is separated from the fascia and moved laterally, before the excision is continued through the posterior rectus sheath (if above the arcuate line) and the transversalis fascia, reaching the peritoneum and abdominal cavity.
  • Discussion – The incision will take a long time and is difficult, however it does prevent any division of the rectus muscle and provides access to lateral structures. A paramedian incision can damage the muscles’ lateral blood and nerve supply, which may result in the atrophy of the muscle medial to the incision.

Kocher Incision

A Kocher incision ③ is a subcostal incision used to gain access for gall bladder and/or biliary tree pathology.

The incision is made to run parallel to the costal margin, starting below the xiphoid and extending laterally. The incision will then pass through the all the rectus sheath and rectus muscle, internal oblique and transversus abdominus, before passing through the transversalis fascia and then peritoneum to enter the abdominal cavity.

Two modifications and extensions of the Kocher incision are possible:

  • Chevron / rooftop incision or modification ④ – the extension of the incision to the other side of the abdomen. This may be used for oesophagectomy, gastrectomy, bilateral adrenalectomy, hepatic resections, or liver transplantation
  • Mercedes Benz incision or modification ⑤ – the Chevron incision with a vertical incision and break through the xiphisternum. This may be used for the same indications as the Chevron incision, however classically seen in liver transplantation.

Whilst open procedures that come with inherent drawbacks, all these subcoastal incisions provide the surgeon with good exposure to the abdominal viscera and tend to heal well.

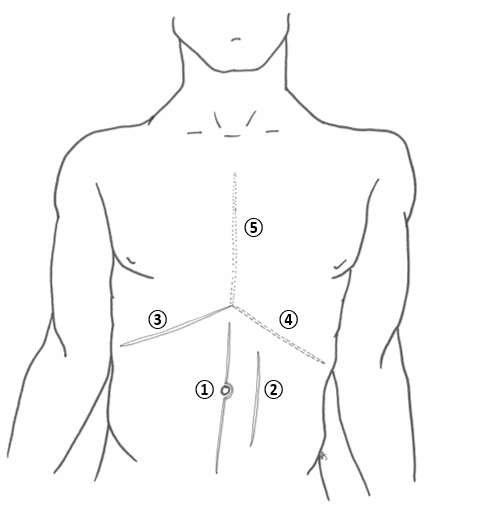

Fig 2 - Common abdominal incisions. ① Midline incision, ② Paramedian incision, ③ Kocher incision, ④ Rooftop modification and ⑤ Mercedes Benz modification.

Fig 2 – Common abdominal incisions. ① Midline incision, ② Paramedian incision, ③ Kocher incision, ④ Rooftop modification and ⑤ Mercedes Benz modification.


Laparoscopic Port Sites

Laparoscopic surgery (keyhole surgery) requires small incisions to be made in the skin, which allow instruments to be passed into the abdominal cavity. Common instruments include the camera, cutting and dissecting scissors, and grippers.

The port sites will vary depending on the surgery being performed, yet the umbilicus is nearly always utilised as a port site to allow the camera to pass through.

Further Reading

Systematic review and meta-analysis of cutting diathermy versus scalpel for skin incision
